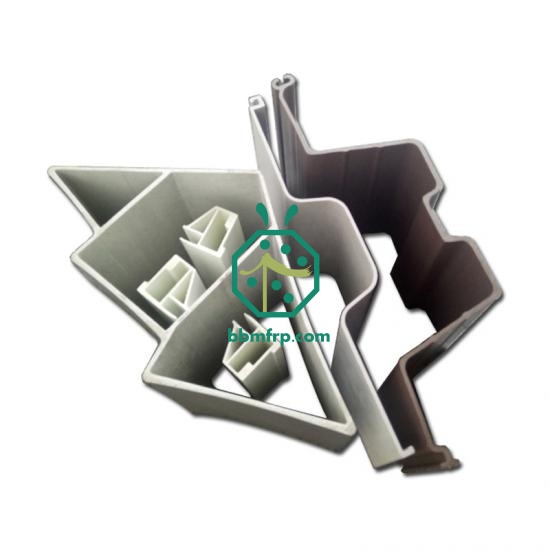

Durable Marine Composite Sheet Piling Profile
Composite sheet pile manufactured by the pultrusion process and is designed to be able to weather the harsh marine environment. Many traditional methods of building seawalls from wood, steel, and even concrete simply cannot hold up over time. FRP sheet piling is an efficient and environmentally friendly alternative to steel sheet piling in marine structures, flood walls, and seepage barriers. It’s the strongest, most durable composite sheet piling profile available and often specified for bulkheads in areas that require heavy loading support.
Features of FRP sheet pile:
Thickness:
4mm
Section Width:
420mm
Section Depth:
120mm
Length:
Any length
Weight:
5.5kg/m
Color:
Dark gray color
Material of composite sheet pile:
- Resin (Unsaturated Ortho Polyester resin)
- Fiberglass (E-glass, alkali-free glass fiber)
- Others: filler, pigment etc.
Mechanical resistance of marine composite sheet pile:
Moment of Inertia:
Ix1620cm4/m
Section Modulus:
Wx=276.3cm3/m
Tensile Strength:
280Mpa
Flexural Strength:
230Mpa
Barcol Hardness:
45
Izod Impact:
0.9J/mm
Water Absorption:
0.16%/24hrs@25℃

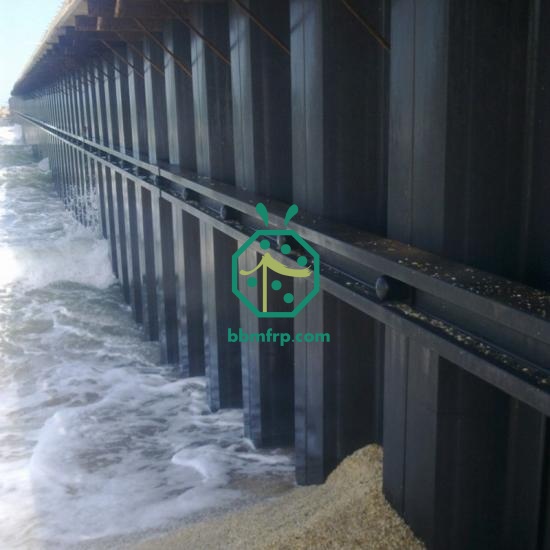

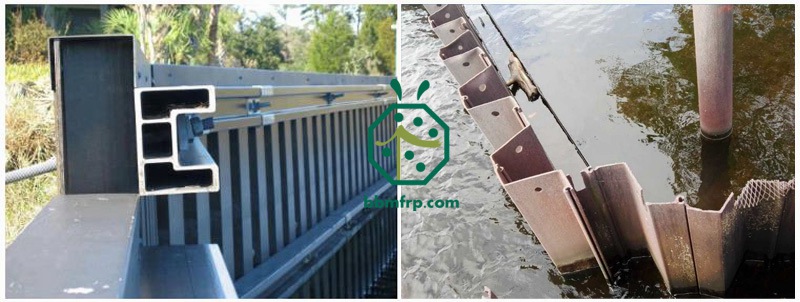

Application of marine fiberglass sheet pile:
