PVC sheet pile is a type of synthetic sheet pile made from polyvinyl chloride (PVC). It is commonly used for various construction and engineering applications, including retaining walls, flood protection, marine structures, soil stabilization, trench shoring, environmental protection, temporary works, etc..
1. Size of U Type PVC Sheet Pile
2. Features of PVC Sheet Pile
Thickness:
8mm (9mm or 10mm for option)
Section Width:
610mm
Section Depth:
250mm
Length:
Any length (By container (11.8m or less) )
Weight:
14kg/m
Color:
Grey color or customized
3. Mechanical resistance of PVC Sheet Piling
Moment of Inertia:
12780 cm4/m
Section Modulus:
1090 cm3/m
Ultimate Moment:
4780 kg-m/m
Tensile Strength:
48.7 MPa
Flexural Strength:
3340MPa
Modules of Elasticity:
3580MPa
Lzod Impact Strength:
4.5 KJ/m2
Heat Deflection Temperation:
72℃

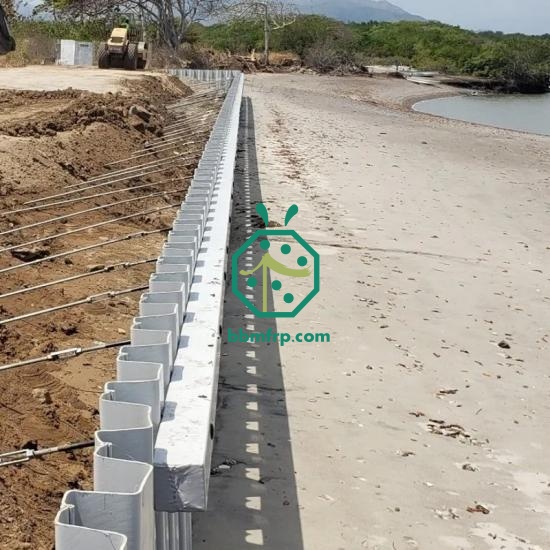

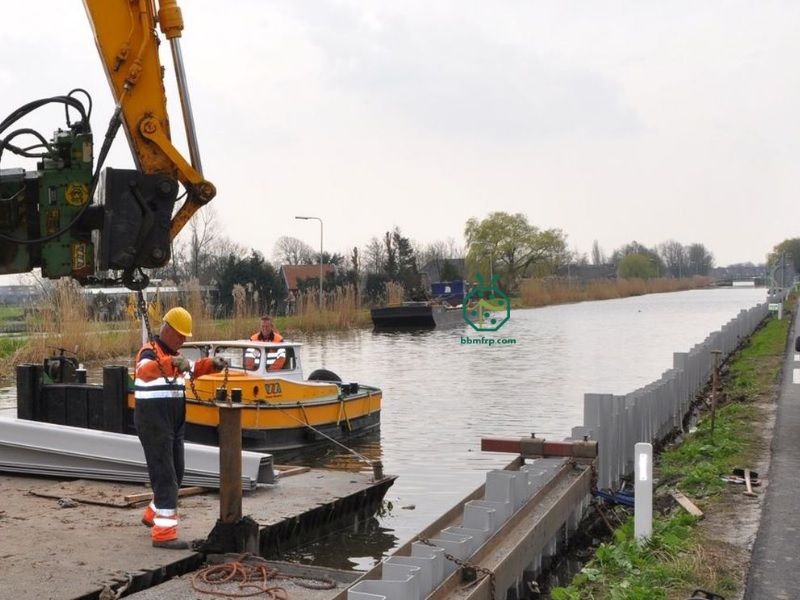

4. Application of PVC Sheet Piles
The high quality of PVC sheet piles of Beatles is guaranteed by state-of-the-art manufacturing plants and technologies as well as about 10 years of experience in processing plastic materials.
