PVC sheet pile is a type of retaining wall system made from polyvinyl chloride (PVC) material. It is used in construction projects to provide support and stability to excavations or structures that require containment of soil or water. PVC sheet piles are lightweight, durable, and resistant to corrosion, making them suitable for various applications such as waterfronts, underground structures, and flood control. They are often installed using interlocking sections to create a continuous barrier against soil or water pressure. PVC sheet piles offer advantages such as ease of installation, low maintenance, and environmental friendliness.

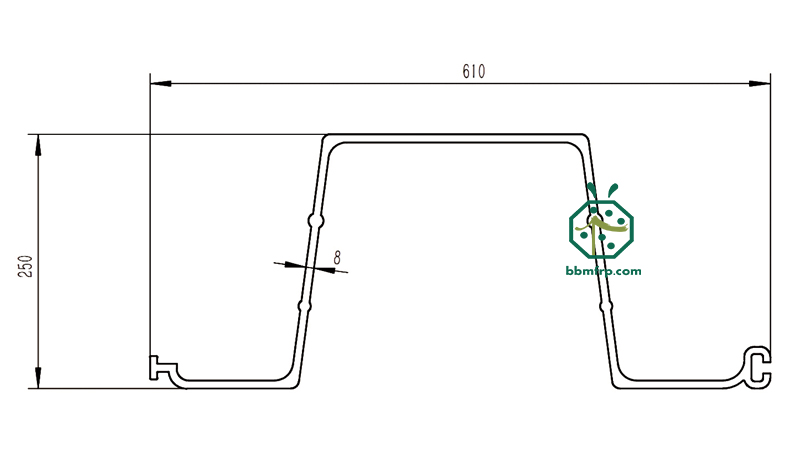

1. Size of U Type PVC Sheet Pile
2. Features of PVC Sheet Pile
Thickness:
8mm (9mm or 10mm for option)
Section Width:
610mm
Section Depth:
250mm
Length:
Any length (By container (11.8m or less) )
Weight:
14kg/m
Color:
Grey color or customized
3. Mechanical resistance of PVC Sheet Piling
Moment of Inertia:
12780 cm4/m
Section Modulus:
1090 cm3/m
Ultimate Moment:
4780 kg-m/m
Tensile Strength:
48.7 MPa
Flexural Strength:
3340MPa
Modules of Elasticity:
3580MPa
Lzod Impact Strength:
4.5 KJ/m2
Heat Deflection Temperation:
72℃

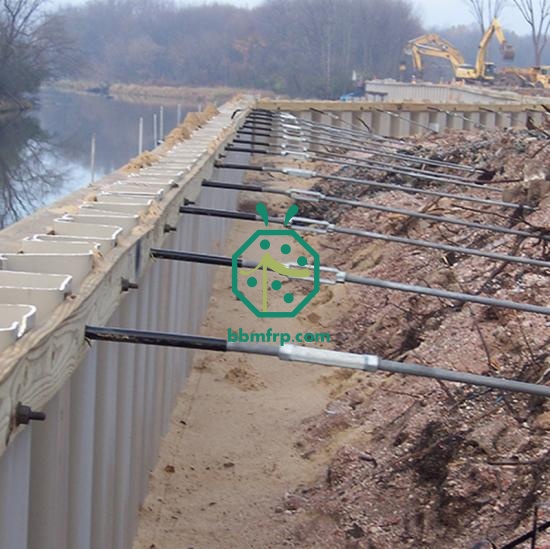

4. Application of PVC Sheet Piles
The high quality of PVC sheet piles of Beatles is guaranteed by state-of-the-art manufacturing plants and technologies as well as about 10 years of experience in processing plastic materials.
