Vinyl Z type sheet piles are produced in zigzag form. They are more widely used than U type piles in port construction and deep foundations because Z type sheets can have greater modulus and can be used as intermediate piles in tubular and HZ combination walls.
1. Size of Vinyl Z type sheet pile
2. Features of Vinyl sheet pile
Thickness:
8mm (9mm or 10mm for option)
Section Width:
400.25mm
Section Depth:
180mm
Length:
Any length (By container (11.8m or less) )
Weight:
8kg/m
Color:
Grey color or customized
3. Mechanical resistance of Vinyl Sheet Pile
Moment of Inertia:
12780 cm4/m
Section Modulus:
1090 cm3/m
Ultimate Moment:
4780 kg-m/m
Tensile Strength:
48.7 MPa
Flexural Strength:
3340MPa
Modules of Elasticity:
3580MPa
Lzod Impact Strength:
4.5 KJ/m2
Heat Deflection Temperation:
72℃

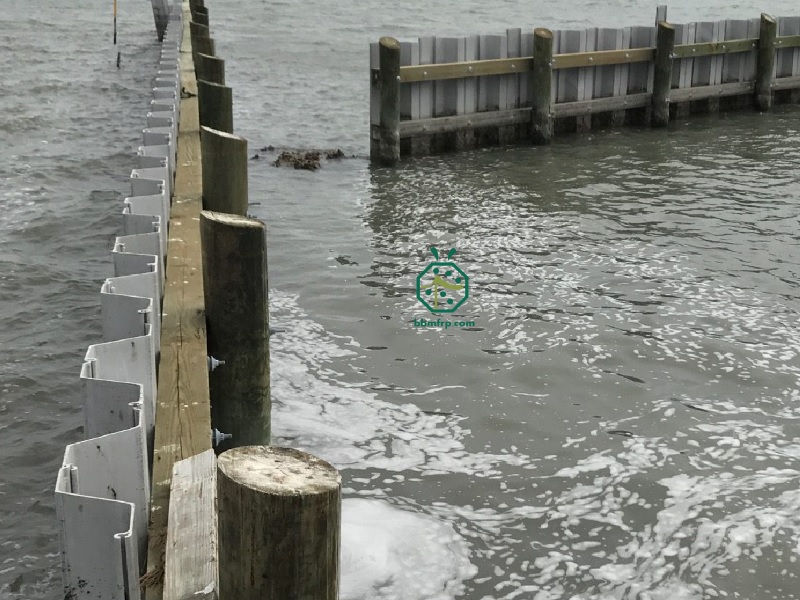

4. Application of Vinyl sheet piling
One of the primary advantages of Vinyl Z type sheet piles is their excellent resistance to corrosion. Unlike traditional materials like steel, vinyl does not rust or degrade when exposed to saltwater, making it a durable and long-lasting option for coastal applications such as shore protection.
